The STORM super-resolution (SR) imaging of NIH/3T3 cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb®(A24804PM, Abclonal at dilution of 1:200 with 3% paraformaldehyde (PFA) +0.1% glutaraldehyde (GA) fixation. The immunostaining was performed by Full Automatic Immunofluorescence Workflow System (Workflow Ultra300, Nano-Micro imaging, China). Image was performed with Single-Molecule Localization Super-Resolution Microscopy (STORM Ultra300, Nano-Micro imaging, China). We acknowledge Nano-Micro imaging Biotechnology Co., Ltd. (宁波纳微成像生物科技有限公司) in SR image processing and kindly providing this image.

Western blot analysis of lysates from NIH/3T3 cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM) at 1:5000 dilution incubated at room temperature for 1.5 hours. NIH/3T3 cells were treated with PNGase F(1μL) at 37℃ for 3 hours.Secondary antibody: HRP-conjugated Goat anti-Rabbit IgG (H+L) (AS014) at 1:10000 dilution.Lysates/proteins: 30 μg per lane. Blocking buffer: 3 % nonfat dry milk in TBST. Detection: ECL Basic Kit (RM00020). Exposure time: 10s.

Western blot analysis of lysates from Mouse kidney using [KD Validated] LAMP1/CD107a Rabbit PolymAb® at 1:5000 dilution incubated at room temperature for 1.5 hours.Secondary antibody: HRP-conjugated Goat anti-Rabbit IgG (H+L) (AS014) at 1:10000 dilution.Lysates/proteins: 25 μg per lane.Blocking buffer: 3% nonfat dry milk in TBST.Detection: ECL Basic Kit (RM00020).Exposure time: 10s.

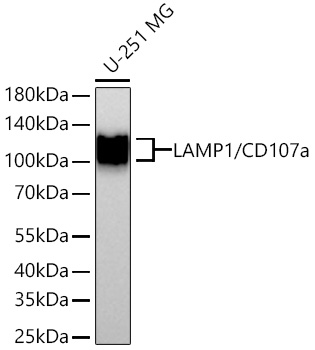

Western blot analysis of lysates from U-251 MG cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM) at 1:5000 dilution incubated at room temperature for 1.5 hours.Secondary antibody: HRP-conjugated Goat anti-Rabbit IgG (H+L) (AS014) at 1:10000 dilution.Lysates/proteins: 25 μg per lane.Blocking buffer: 3% nonfat dry milk in TBST.Detection: ECL Basic Kit (RM00020).Exposure time: 45s.

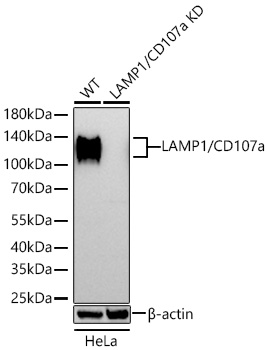

Western blot analysis of lysates from wild type (WT) and LAMP1/CD107a knockdown (KD) HeLa cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM) at 1:5000 dilution incubated at room temperature for 1.5 hours.Secondary antibody: HRP-conjugated Goat anti-Rabbit IgG (H+L) (AS014) at 1:10000 dilution.Lysates/proteins: 25 μg per lane.Blocking buffer: 3% nonfat dry milk in TBST.Detection: ECL Basic Kit (RM00020).Exposure time: 90s.

Confocal imaging of NIH/3T3 cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM, dilution 1:200) followed by a further incubation with Cy3 Goat Anti-Rabbit IgG (H+L) (AS007, dilution 1:500) (Red). The cells were counterstained with α-Tubulin Mouse mAb (AC012, dilution 1:400) followed by incubation with ABflo® 488-conjugated Goat Anti-Mouse IgG (H+L) Ab (AS076, dilution 1:500) (Green). DAPI was used for nuclear staining (blue). Objective: 100x.

Confocal imaging of HeLa cells and LAMP1/CD107a knockdown(KD) HeLa cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM, dilution 1:200) followed by a further incubation with Cy3 Goat Anti-Rabbit IgG (H+L) (AS007, dilution 1:500) (Red). The cells were counterstained with α-Tubulin Mouse mAb (AC012, dilution 1:400) followed by incubation with ABflo® 488-conjugated Goat Anti-Mouse IgG (H+L) Ab (AS076, dilution 1:500) (Green). DAPI was used for nuclear staining (blue). Objective: 100x.

Confocal imaging of C2C12 cells using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM, dilution 1:200) followed by a further incubation with Cy3 Goat Anti-Rabbit IgG (H+L) (AS007, dilution 1:500) (Red). The cells were counterstained with α-Tubulin Mouse mAb (AC012, dilution 1:400) followed by incubation with ABflo® 488-conjugated Goat Anti-Mouse IgG (H+L) Ab (AS076, dilution 1:500) (Green). DAPI was used for nuclear staining (blue). Objective: 100x.

Immunohistochemistry analysis of paraffin-embedded Mouse colon tissue using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM) at a dilution of 1:500 (40x lens). High pressure antigen retrieval performed with 0.01M Tris-EDTA Buffer (pH 9.0) prior to IHC staining.

Immunohistochemistry analysis of paraffin-embedded Human colon carcinoma tissue using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM) at a dilution of 1:500 (40x lens). High pressure antigen retrieval performed with 0.01M Tris-EDTA Buffer (pH 9.0) prior to IHC staining.

Immunohistochemistry analysis of paraffin-embedded Human tonsil tissue using [KD Validated] LAMP1/CD107a Rabbit PolymAb® (A24804PM) at a dilution of 1:500 (40x lens). High pressure antigen retrieval performed with 0.01M Tris-EDTA Buffer (pH 9.0) prior to IHC staining.
